Details

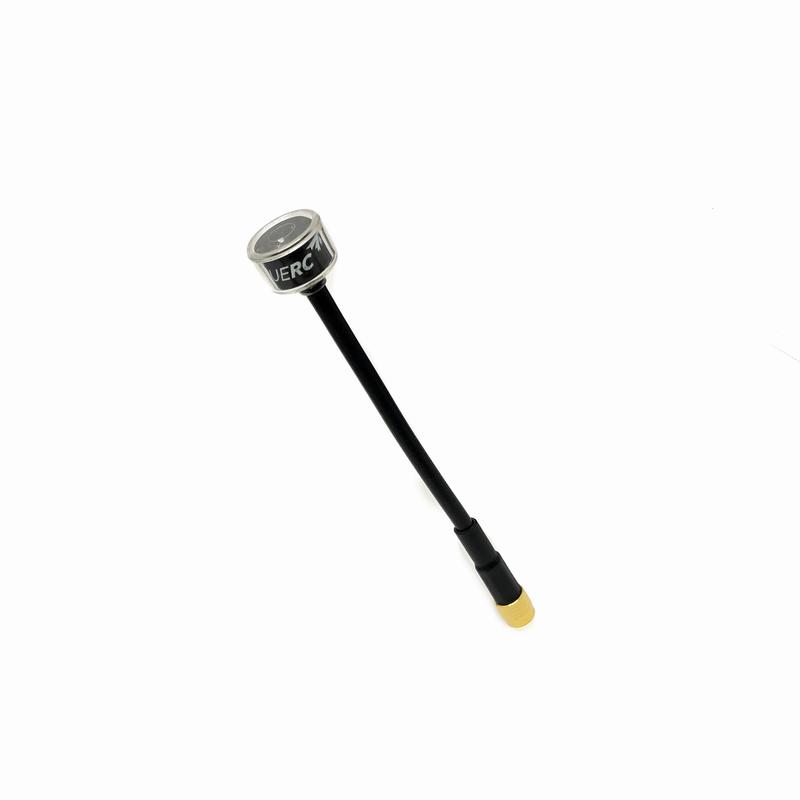

The OCP 5.8 is our new everyday omni antenna. Proven design, great signal, durable and look amazing. Available in all popular connector configurations.
FEATURESDurable poly-carbonate, Injection Molded, ultra-sonically welded Housing
Clear indication of polarization direction
Excellent axial ratio and efficiency
Heavy-duty coax cable that can be bent to shape
Knurled True-SMA for easy tightening
SPECS:
Gain: 1.6dBic
Cross-Polar Rejection: -10 to -20dB, (3.2%)
Bandwidth: 5.6GHz-6.0GHz
Radiation Efficiency: 98%
SWR: <=1.2:1
Dimensions(head): 16.5mm dia. X 10.7mm height.
Length:123mm
Cable: Heavy-duty semi-rigid RG402 coax.
Connector: Reinforced True-SMA male.
