Details
FEATURES
High-performance 32-bit microprocessor with the running frequency of up to 48MHz for an excellent performance.
BLHeli_32 firmware is the third generation BLHeli, following base BLHeli and BLHeli-S.
All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
The code supports features to prevent sync loss. There are tunable parameters that can make the code run well even in the most demanding situations, although default settings will work excellently in normal operating environments.
The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us).
Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power up.
The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttles. This can be very useful for finding lost crafts.
Onboard 10V &5V BEC, powering different accessories such as FC, VTX, Camera and LED lights and etc.
SPECIFICATIONS
LiPo Power input: 3S-6S
Cont.Current: 60Ax4
Burst Current: 80Ax4
BEC Output: 5V@1.5A / 10V@1.5A
Input wires: 12AWG-130mm* (Red/Black)
Output Wire: No wires but solder tabs
Connectors: (In/Out) XT60 (w/ Wires Soldered on) /no
Weight / Size: 15.0g / 32.7×18.4×6.2mm
Mounting holes: 30.5×30.5mm
Throttle Calibration: Supported
ESC Programming: BLHeliSuite32
INCLUDES

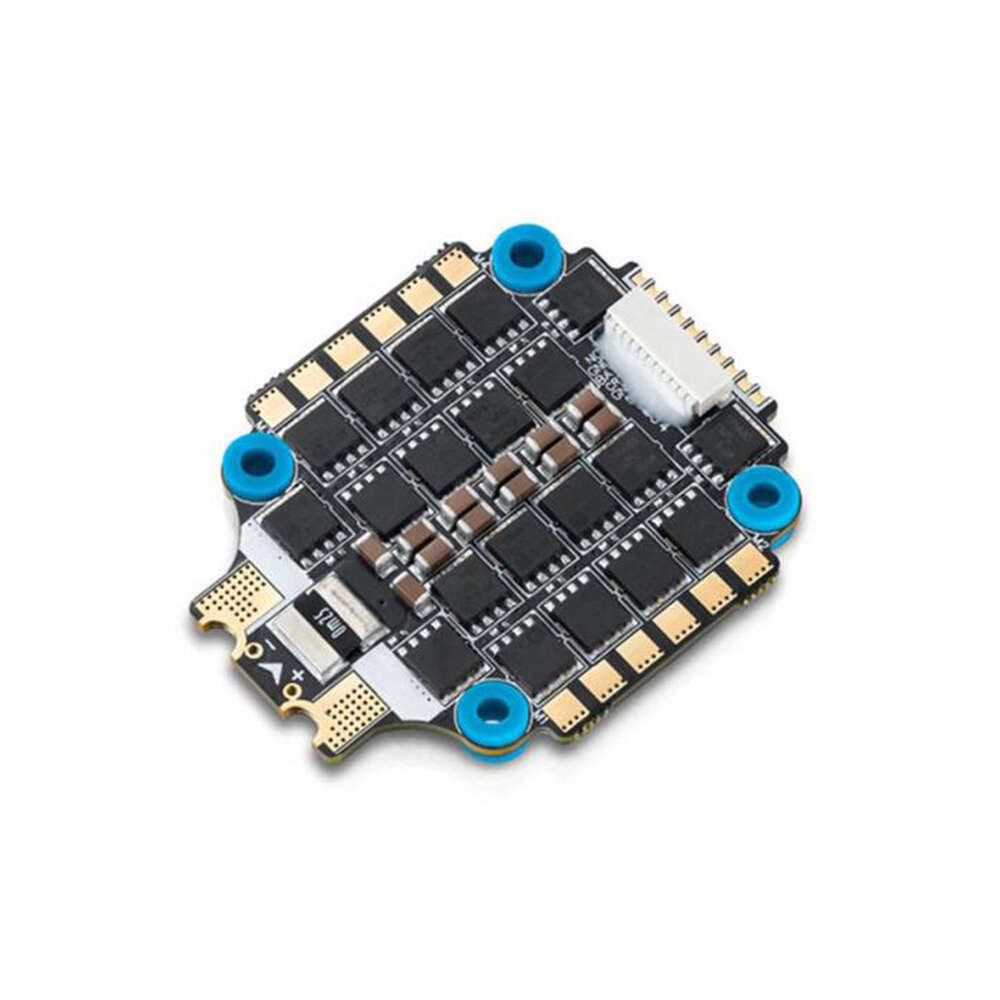

1x XRotor 60A 4-in-1 ESC
