Continuing the tradition of the TBS Triumph and following the tradition of VideoAerialSystem’s ‘Performance First’mantra, TBS is proud to present the TBS Triumph Pro! We managed to decrease the size of the TBS Triumph design while maintaining range and durability. The circular signal rejection signal consistency was further improved over the traditional TBS Triumph, making this antenna better in every way!
The microstrip antenna design together with a rigid and ultrasonic-welded enclosure allow mounting in exposed places, where signal propagates better. The antenna comes in 4 connector flavors: u.FL, MMCX, MMCX 90º and SMA.
FEATURES:
Manufactured and tested to highest standards
Best in class range and signal quality
Incredibly small and low weight
Ultrasonic welded and foam infused cover for ultimate crash-protection
Double-jacket semi-rigid cable for heavy impact resistance
TECHNICAL SPECIFICATIONS:
Frequency range: 5500-6000MHz
Polarization: RHCP
Gain: 1.6dbic
Axial Ratio: 0.99
Cable: RG405/U
Weight: 2-3g
Height: 85mm, 3.3 in
Connector: u.FL
Dimensions (PDF)
PACKAGE CONTENTS:

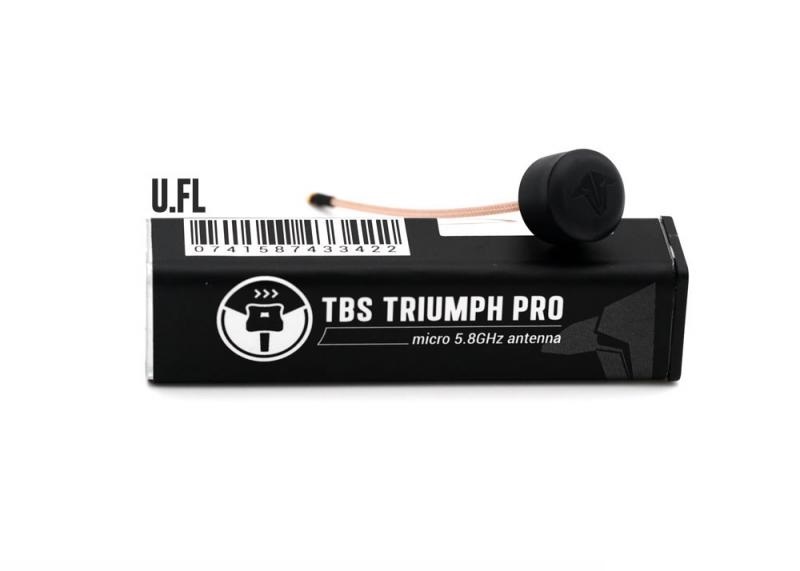

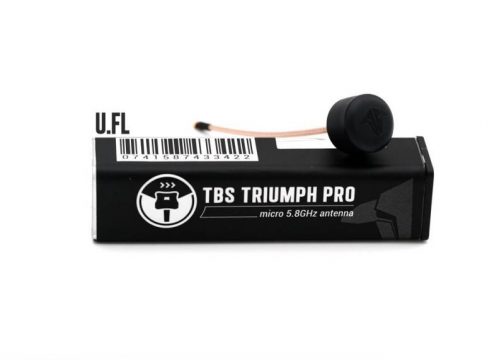

1x TBS Triumph Pro u.FL
